Description

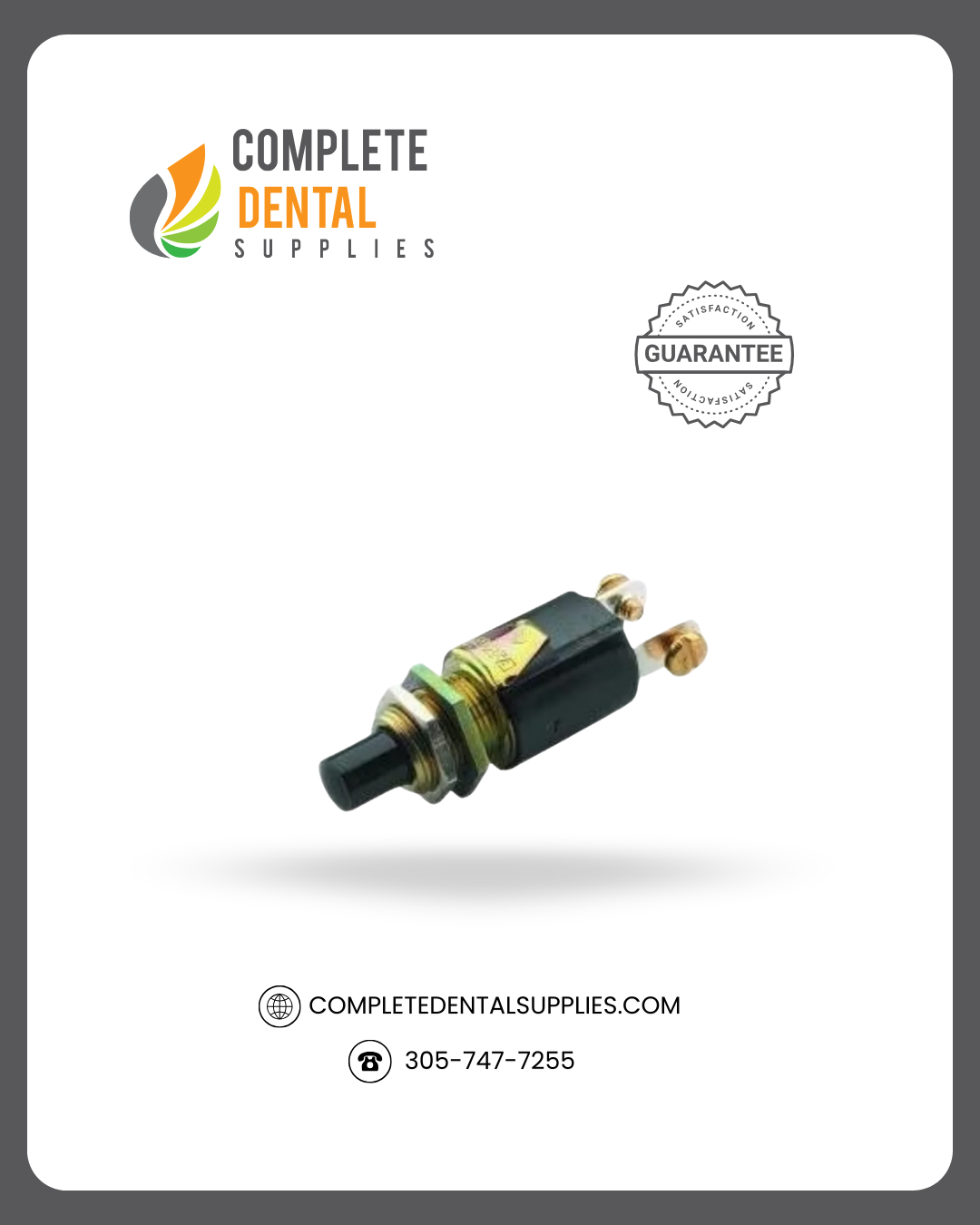

X-Ray Exposure Switch, 3/4 Amp, 125 Volt, Universal.
Part Number # 20511-DCI
Description: Push-Button SPST Normally Open X-Ray Exposure Switch.
This universal X-ray exposure switch provides dependable, momentary contact control for activating dental or medical X-ray systems. The normally open, single-pole single-throw (SPST) configuration ensures the circuit energizes only while the button is pressed—offering safe, precise control during each exposure.
Built with screw terminal connections for quick installation, this switch is compatible with most dental and medical X-ray units requiring a 3/4 Amp, 125V AC/DC control input.
Features
-
Normally Open Push Button: Energizes the circuit only while pressed for safe, controlled exposures.
-
SPST Configuration: Simple, universal single-pole, single-throw operation.
-
Electrical Rating: 3/4 Amp at 125V AC/DC for dependable performance.
-
Screw Terminals: Provide secure and straightforward wiring connections.
-
Universal Compatibility: Fits a wide range of dental and medical X-ray systems.
-
OEM Cross Reference:
-
Chapman-Huffman 016-07
-
Benefits
-
Safe & Precise Operation: Prevents accidental activation; energizes only during exposure.
-
Easy Installation: Screw terminals allow fast, tool-free wiring.
-
Universal Replacement: Simplifies maintenance across multiple X-ray system models.
-
Reliable Performance: Designed for consistent use in demanding clinical settings.
-
Cost-Effective Solution: OEM-quality function at a lower replacement cost.
